PEZY Computing PEZY-SC Chip

We obtained a PEZY-SC chip designed at PEZY Computing, removed the lid, and tried to peek inside the die.

PEZY-SC and FP-1 processors

The PEZY-SC is a 1,024-core many-core processor designed at PEZY Computing. Each core implements an original instruction set architecture, and there are ARM helper cores in additions to them. The ARM core stayed unused at the time when I played around with this chip. The FP-1 chip, pictured next to the PEZY-SC chip, is a previous-generation many-core design at PEZY.

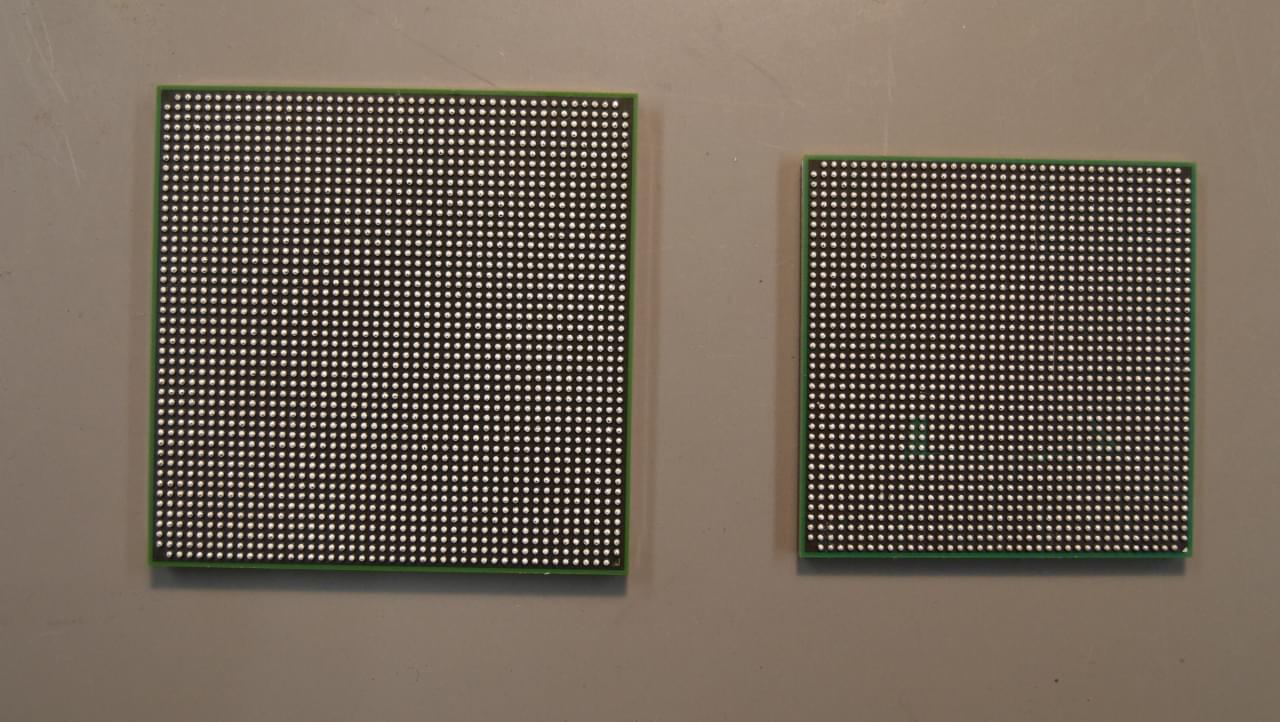

PEZY-SC and FP-1 chip package solder balls on the PEZY-SC and FP-1 chips

The lid is removed with a razor and thin pre-paid cards. After removing the lid, we put the chip on fire to remove the die. The die measures 19.5 mm×21.0 mm for an area of 409.5 mm2.

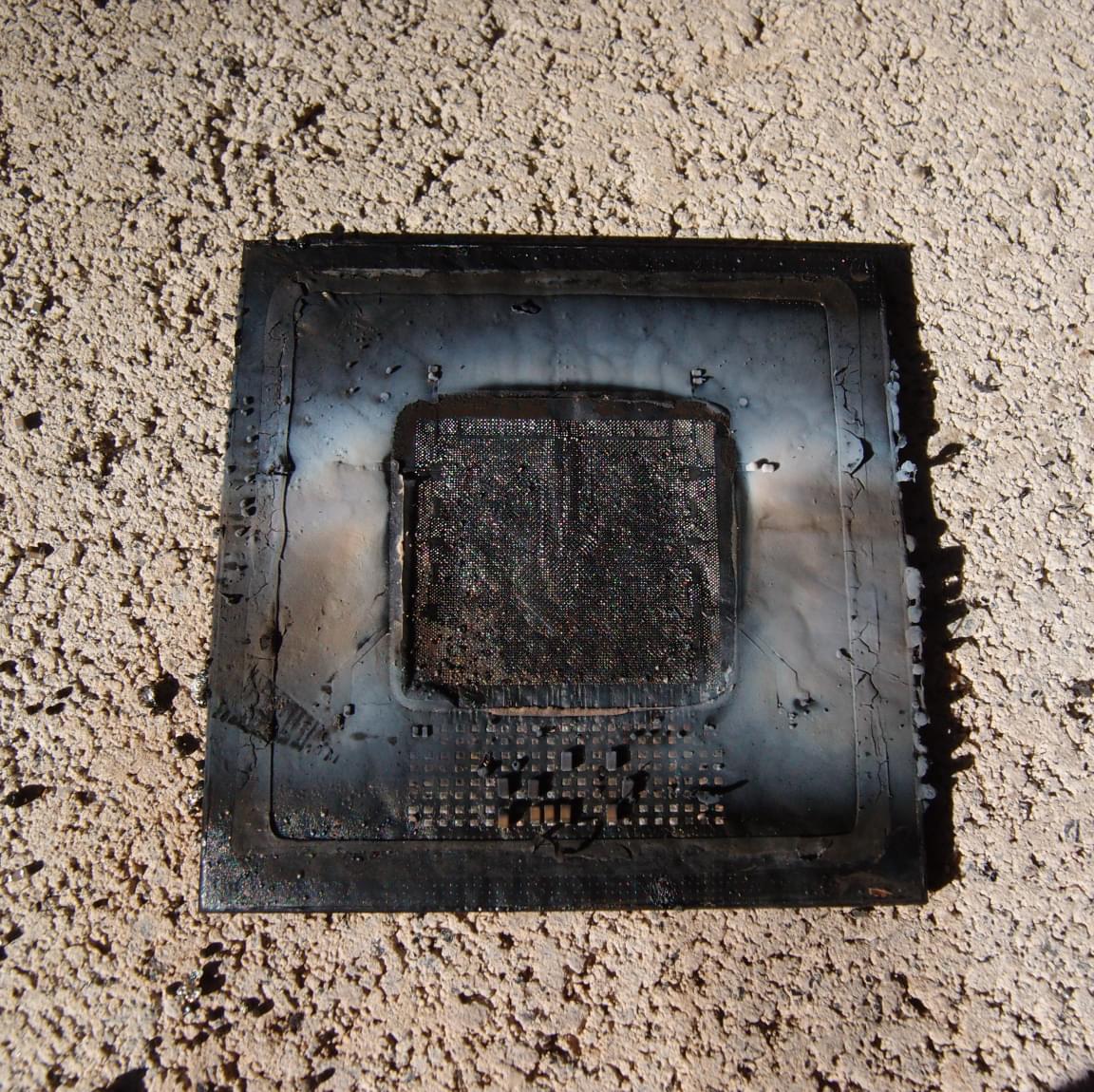

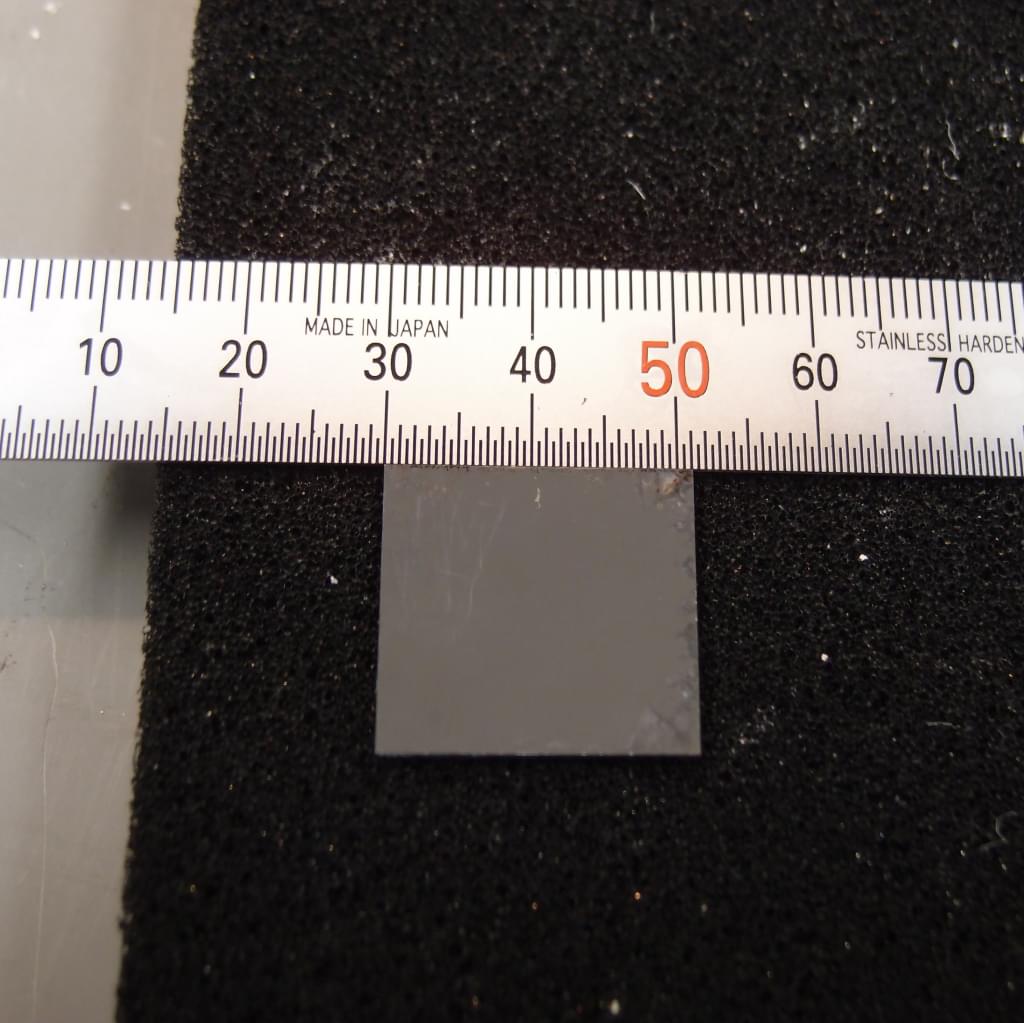

burnt PEZY-SC chip Measuring the size of the PEZY-SC die Mesauring the size of the PEZY-SC die

With the die detached from the package, we put the die in etching chemical to further investigate the structure of the chip.

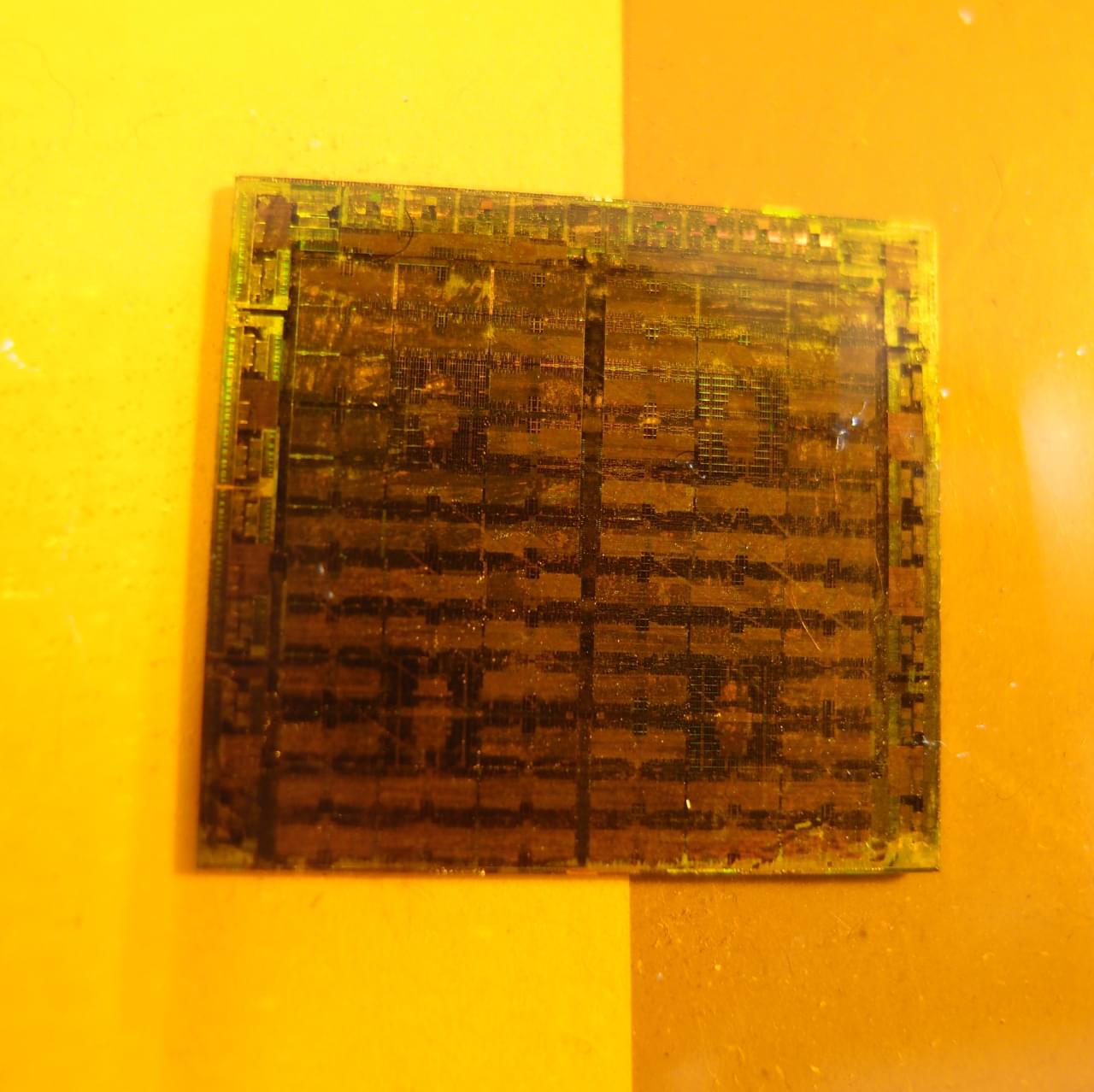

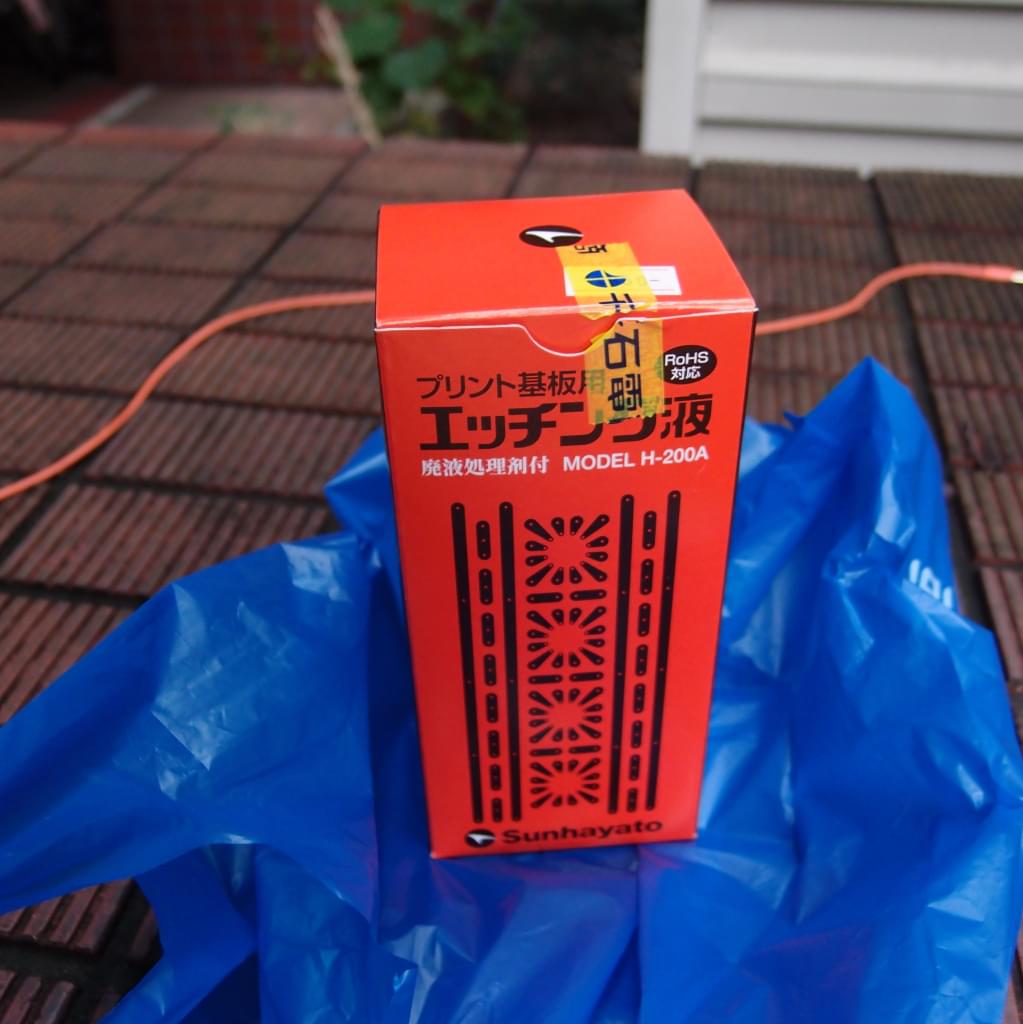

Etching catalyst The chip in the etching chemical

When the die is put in the etching chemical for too long, it stops being shiny, but you can clearly see four clusters of 32 blocks. Each of the block has 8 cores for a total of 1,024 cores.

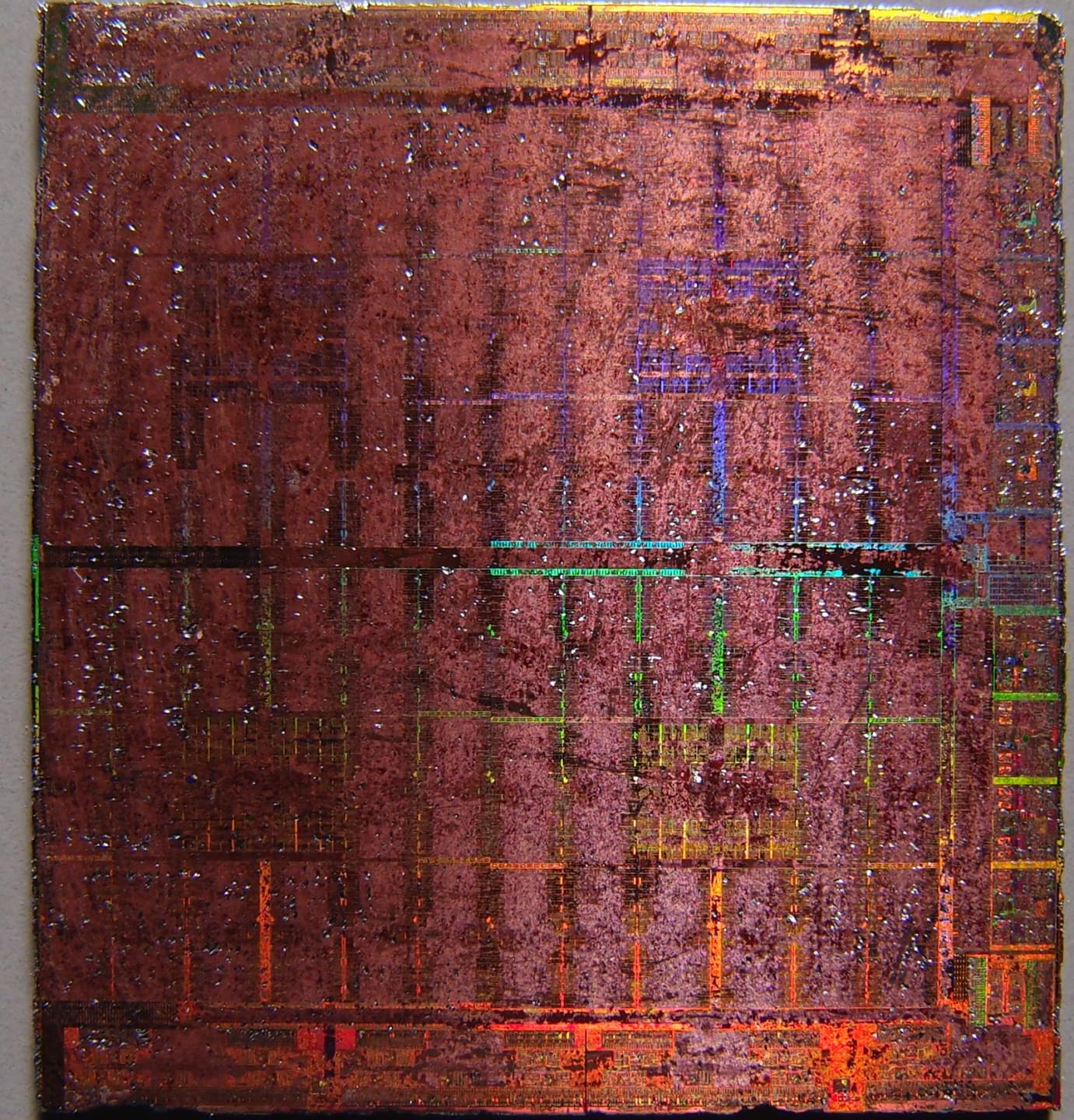

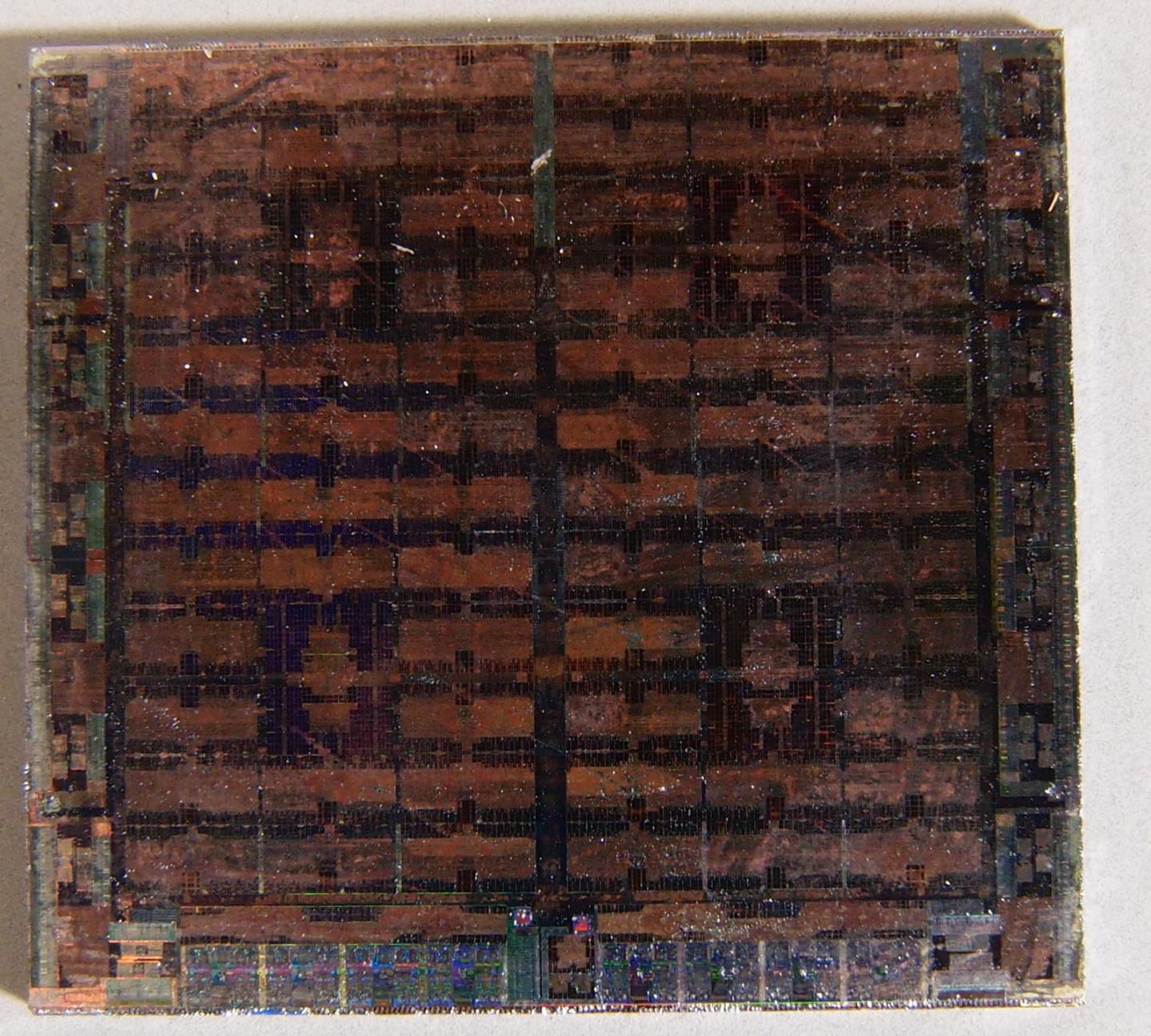

PEZY-SC die half-revealed PEZY-SC die totally revealed

PEZY installation at KEK: Suiren

I saw a working configuration of an Exascaler PEZY-SC system at KEK (just to make sure; some say like nobody has ever seen it working). The system is the first PEZY-SC system to be listed on the Green500 list.

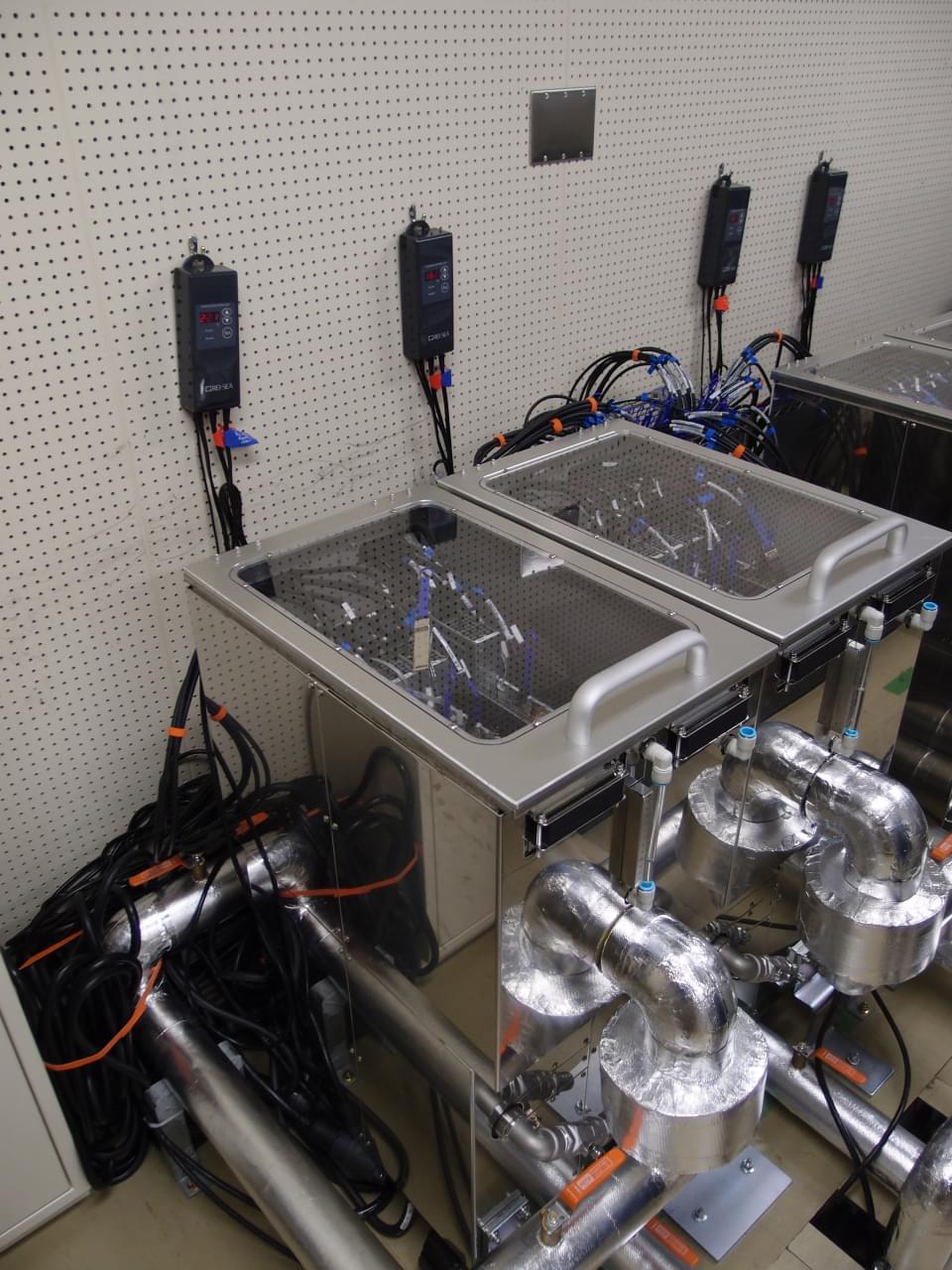

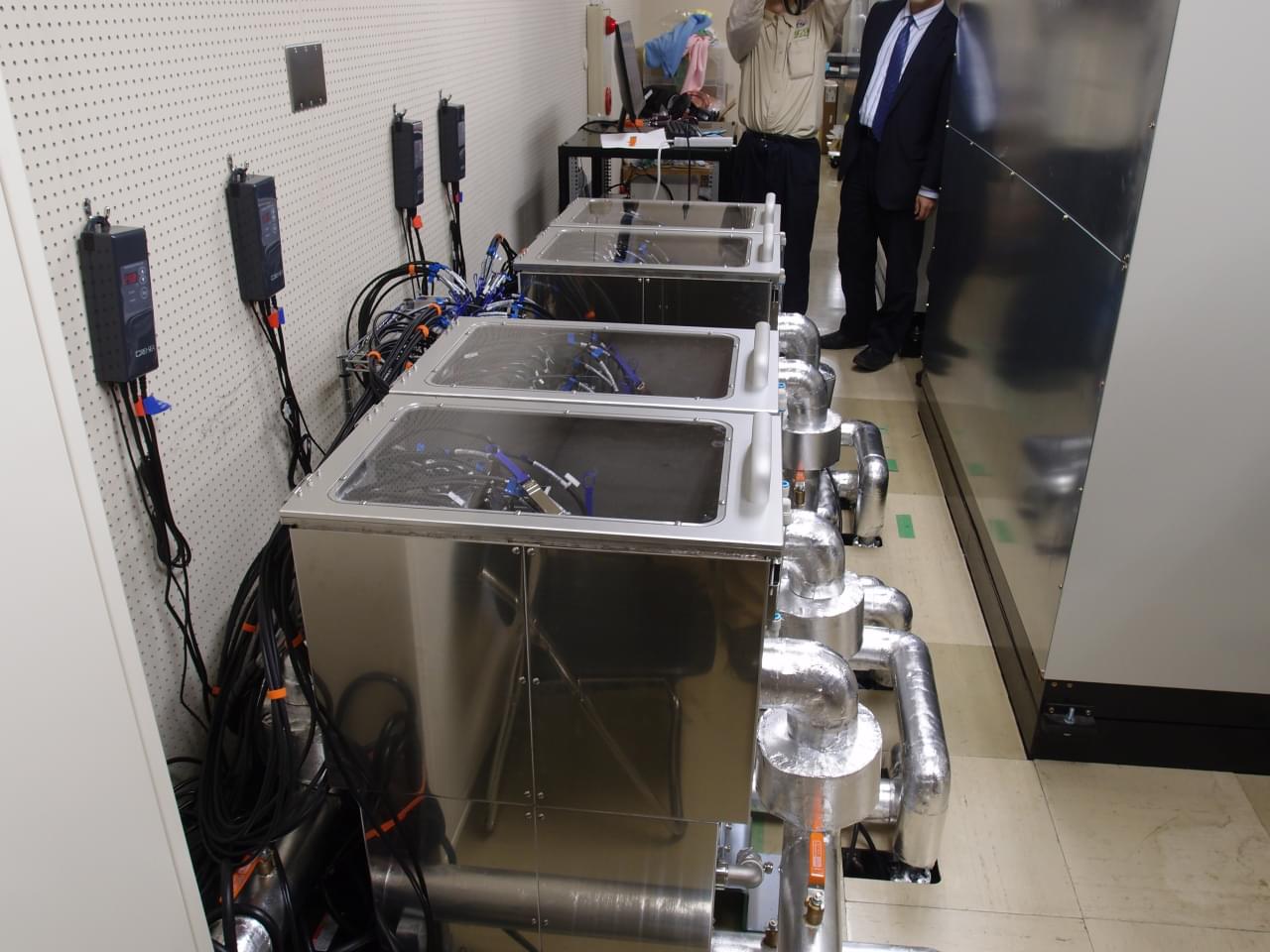

Exascaler Suiren: PEZY-SC water-cooled rack Exscaler Suiren racks Chillers

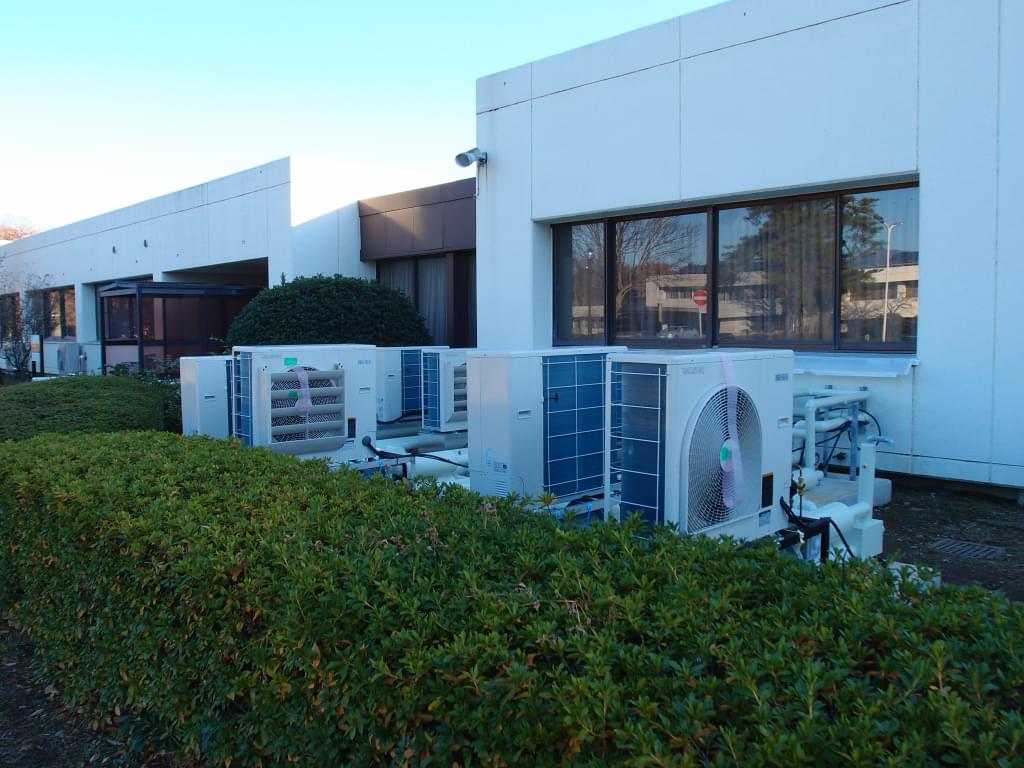

When I visited them sometime later, the number of chiller was doubled.

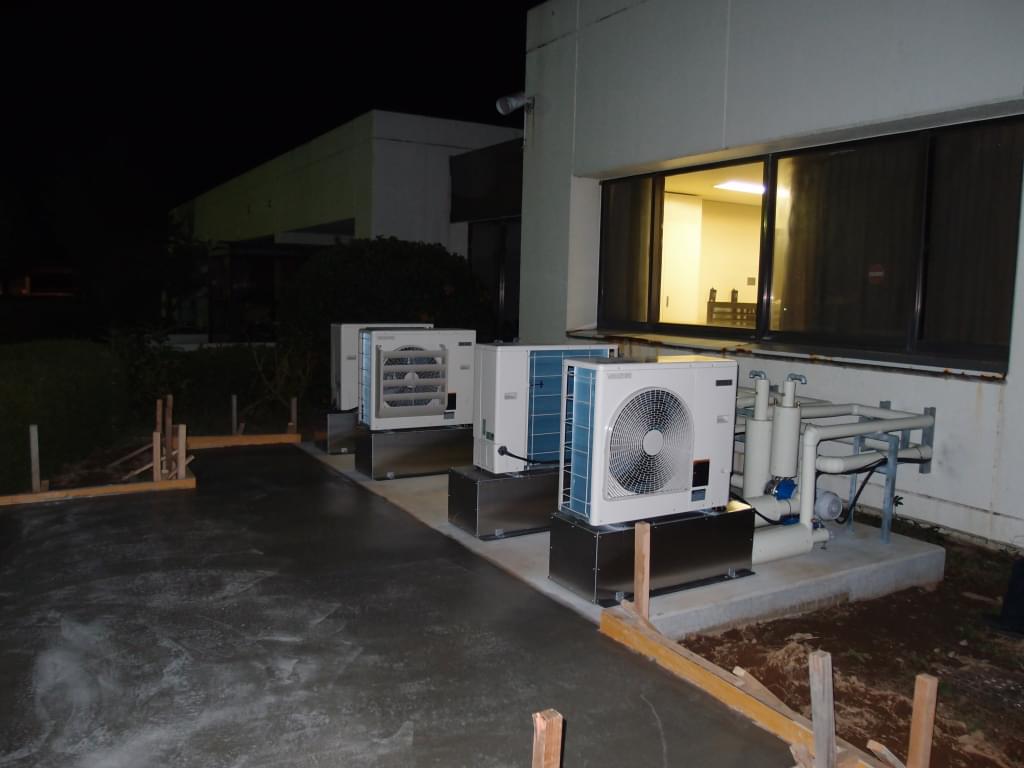

Doubled chillers
