Intel Knights Landing

Following the Knights Corner, we have removed the lid of an Intel Knights Landing processor to measure its die size. I was told that the chip is broken at the time I acquired it, so I didn't hesitate to disassemble it.

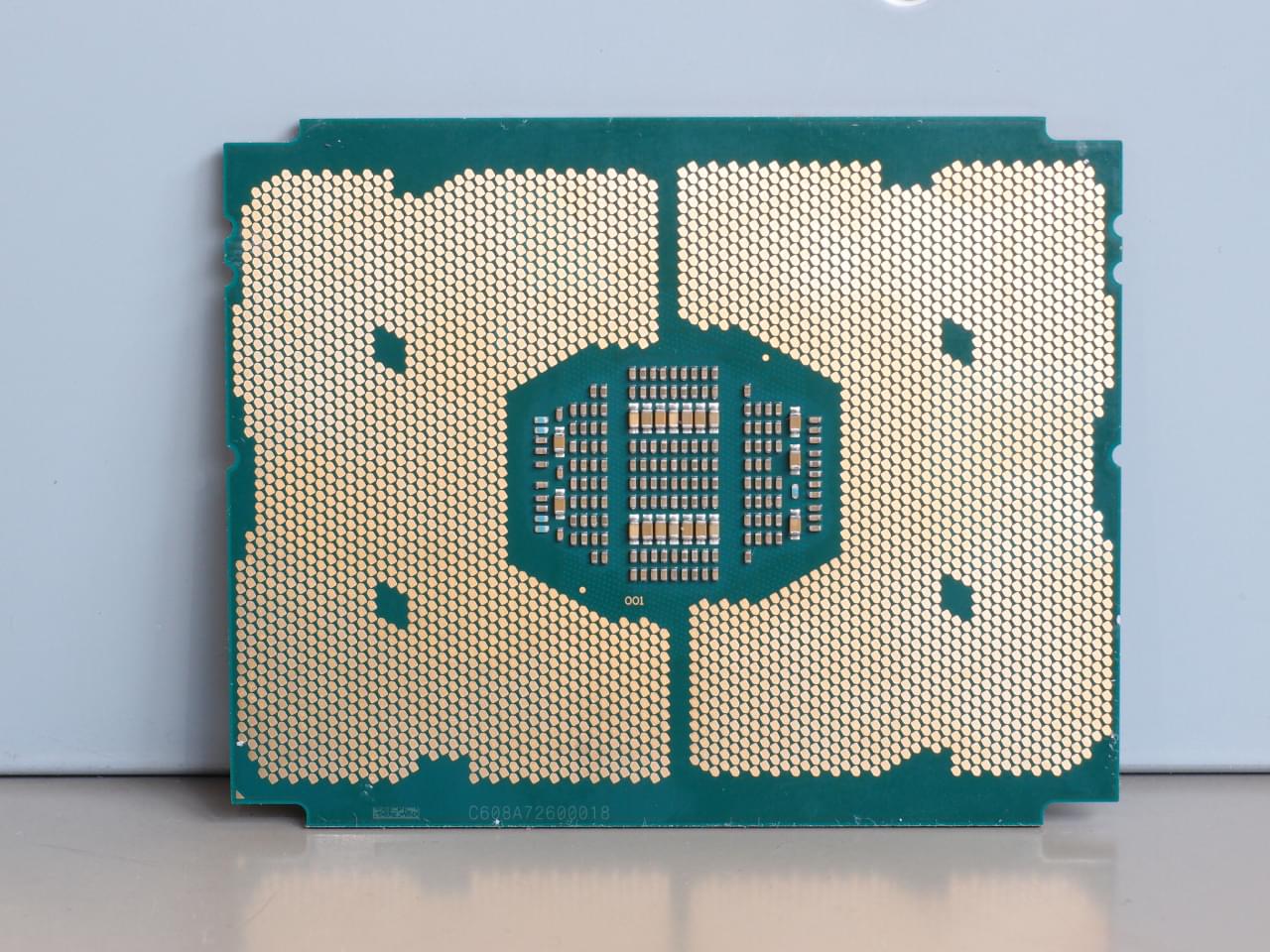

Knights Landing processor pins on the Knights Landing processor

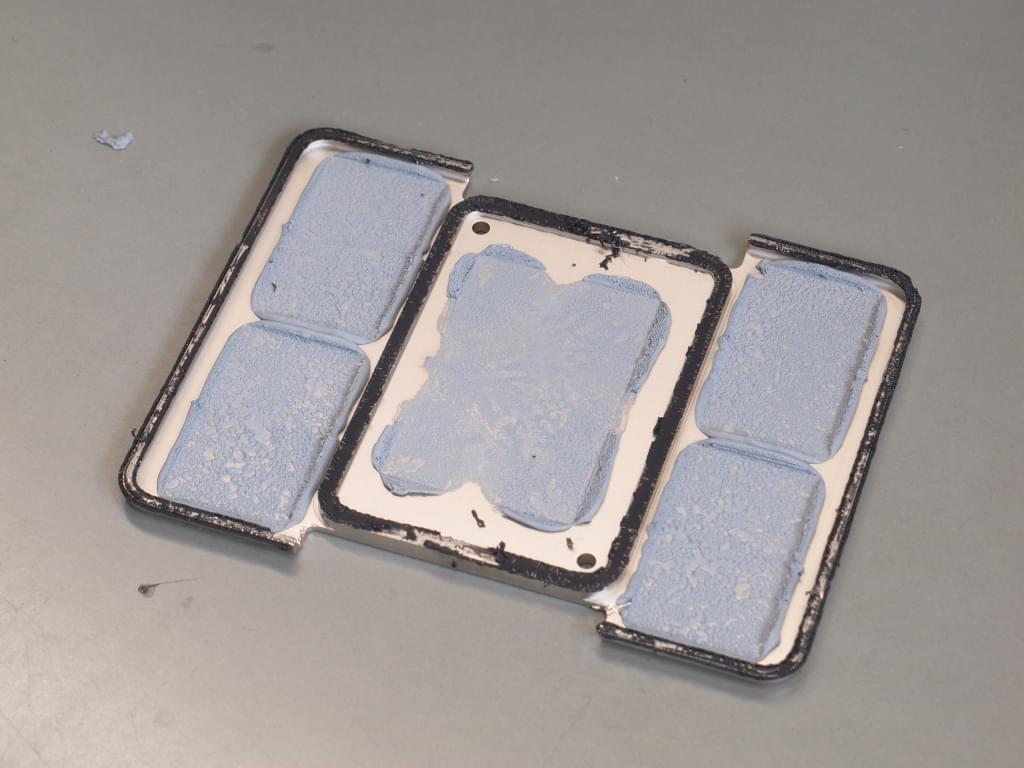

This time again, the heat spreader and the die was thermally connected using grease.

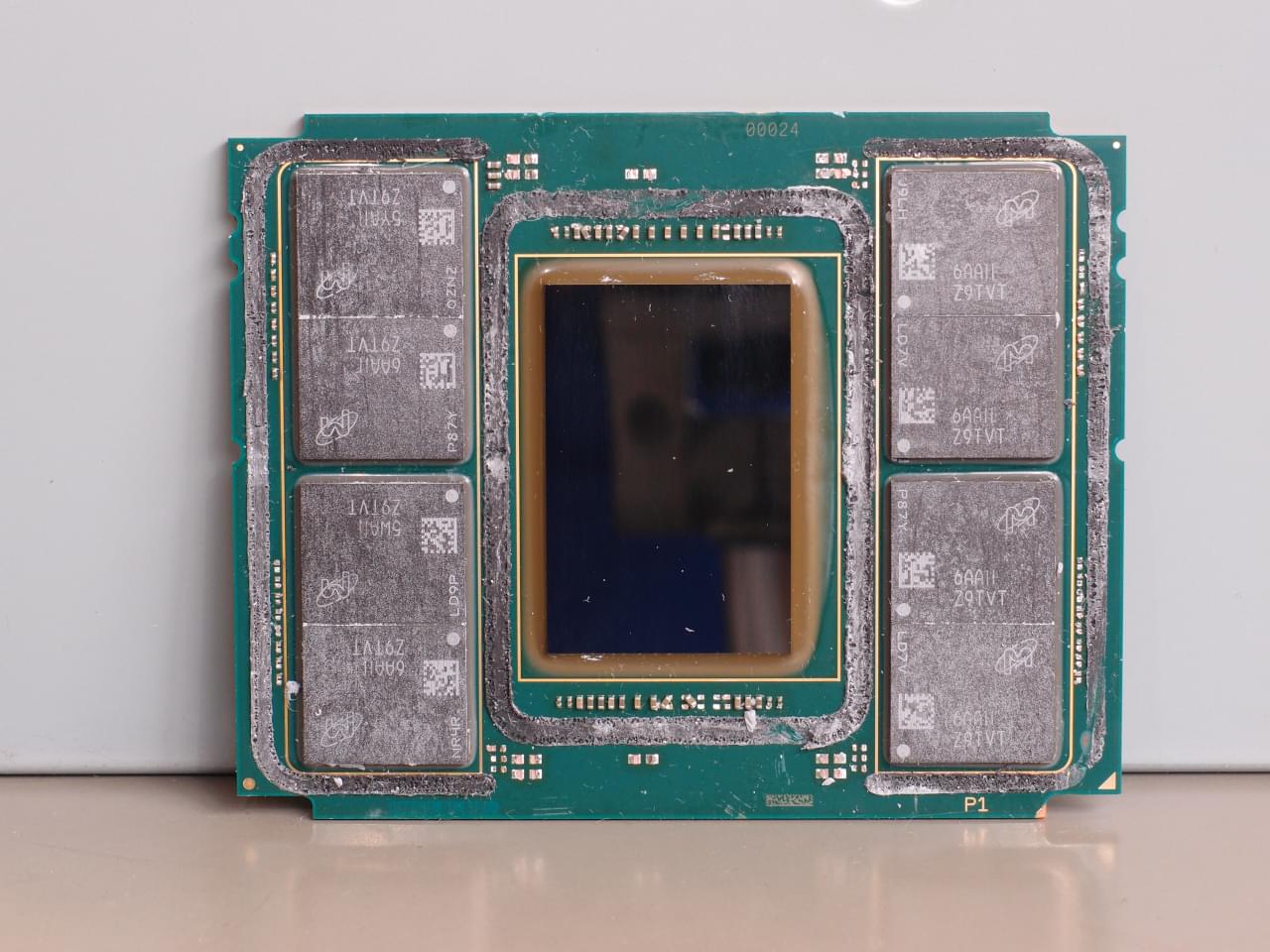

The die measures approximately 20.5 mm × 31.5 mm, so the die size would be around 645.8 mm2. MCDRAM chips are sourced from Micron.

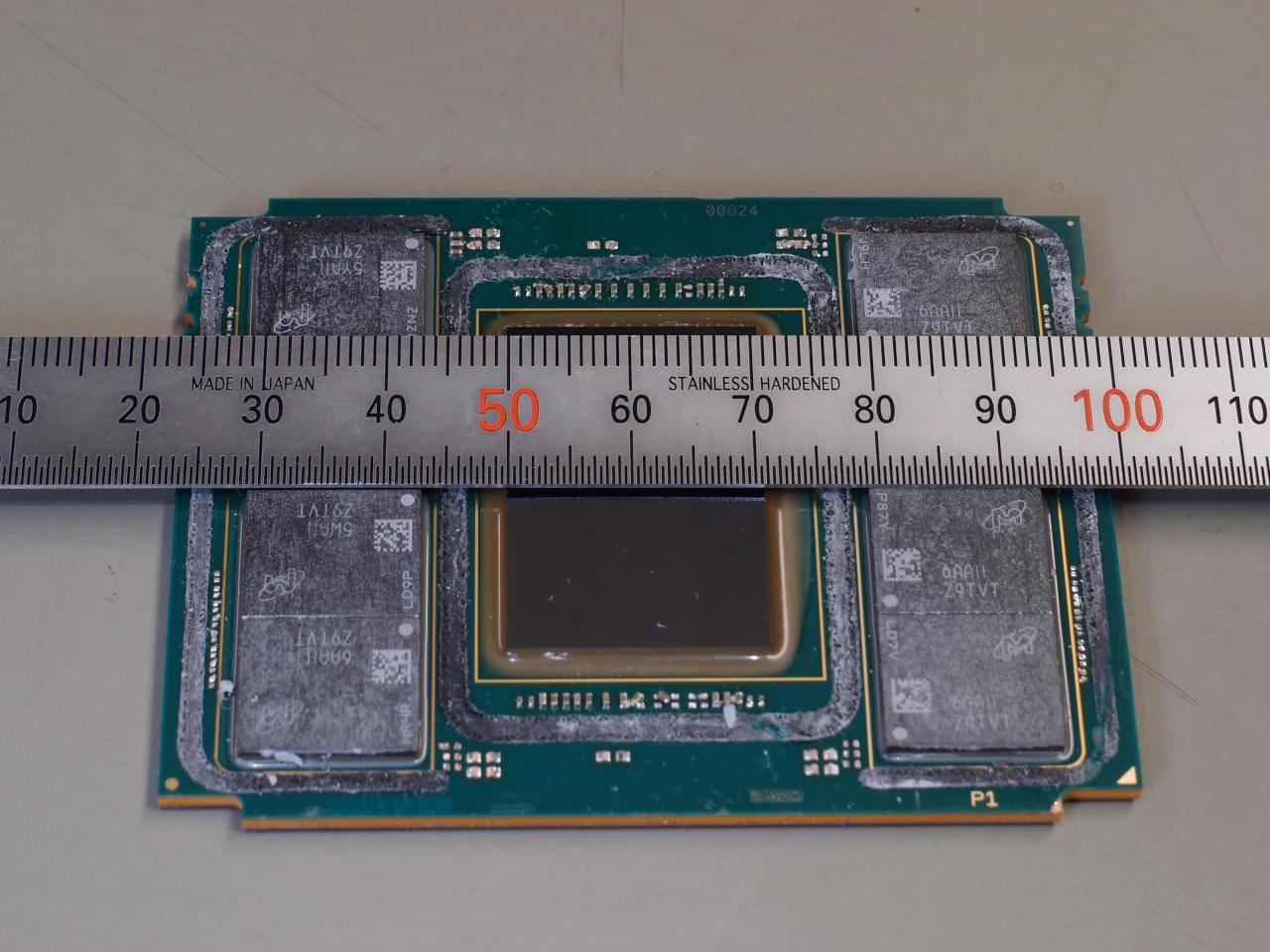

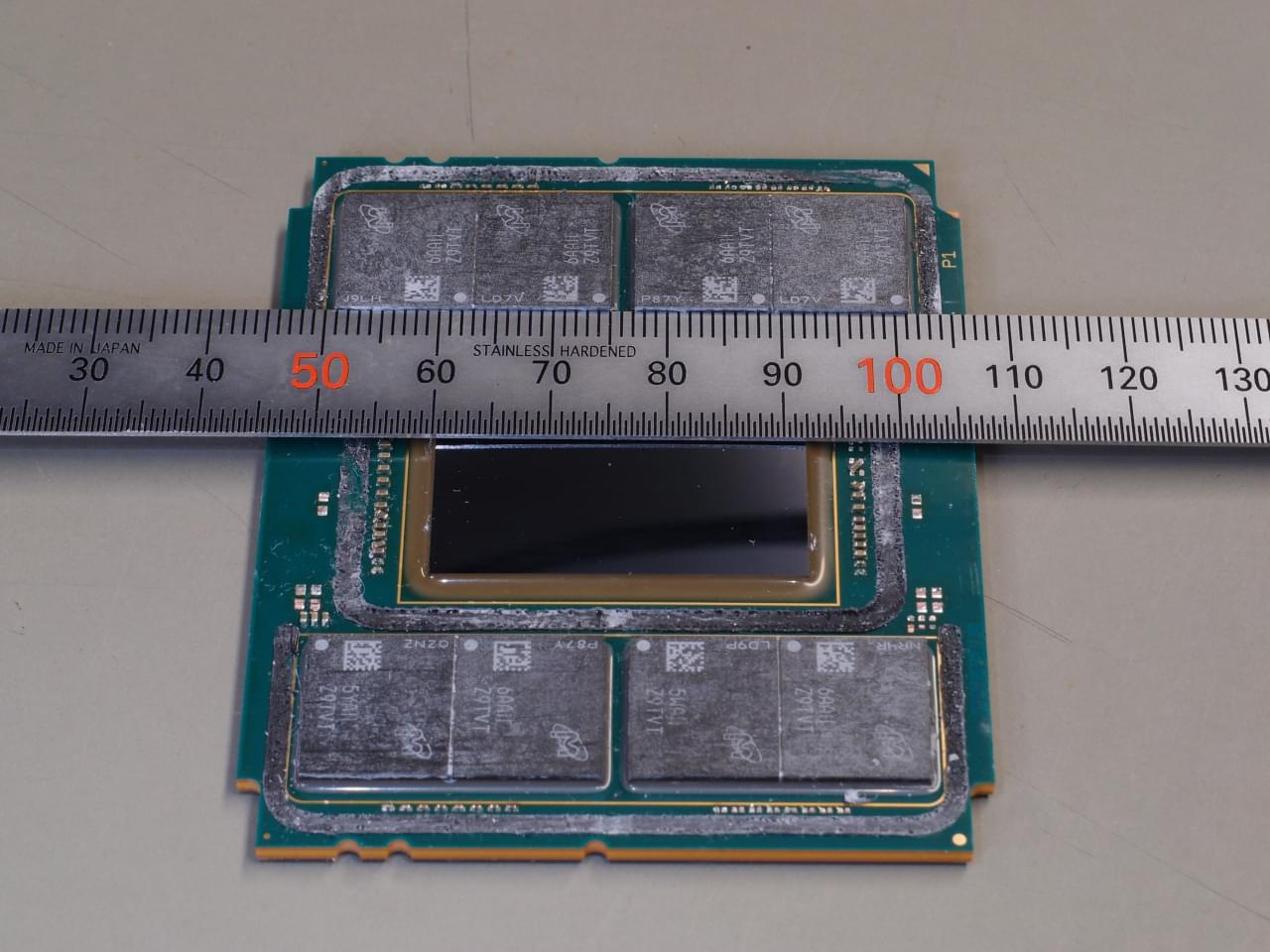

Intel Knights Landing die size X Intel Knights Landing die size Y

Awkward Family Photo (Xeon Phi family)

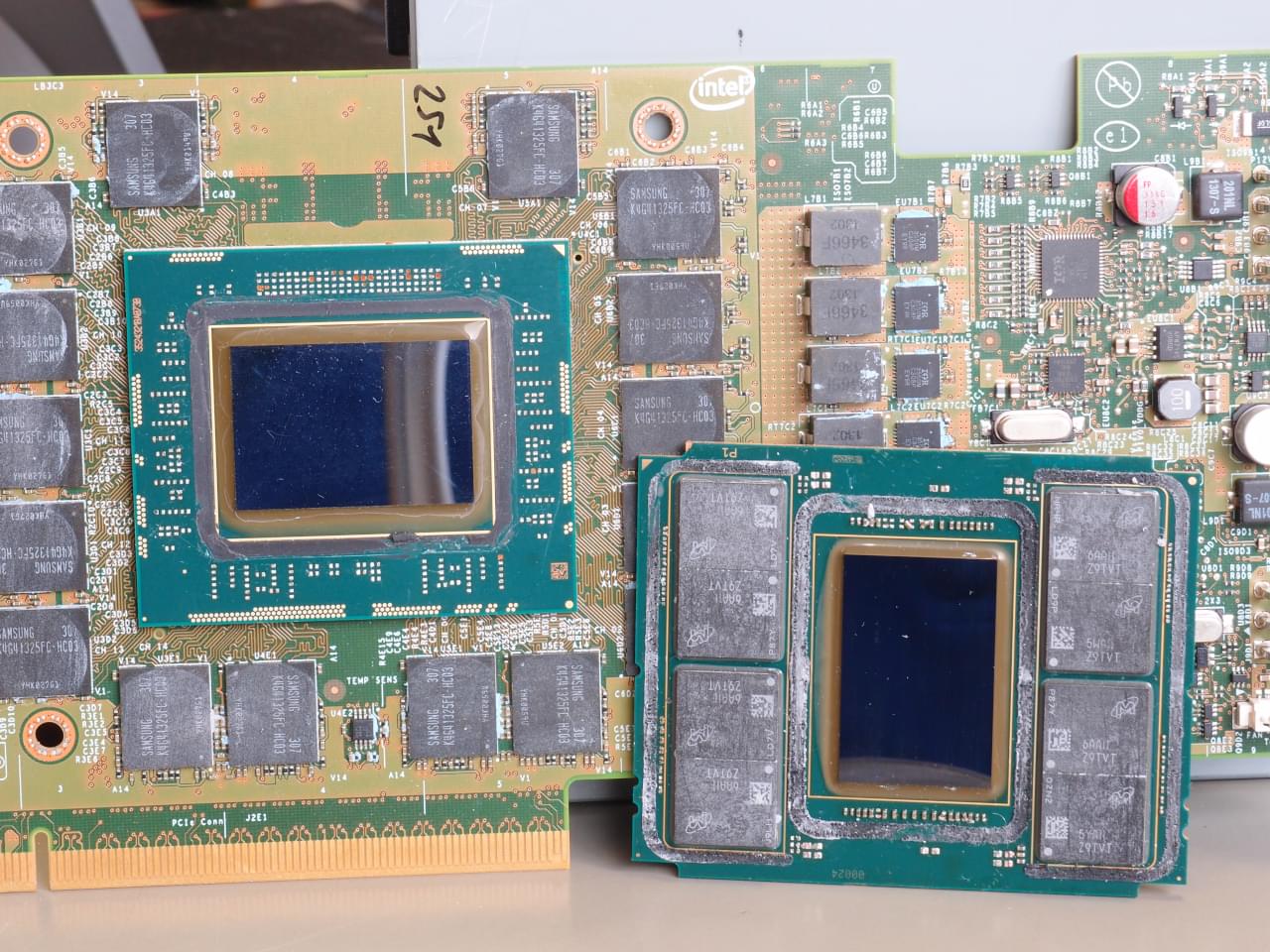

Knights Corner to the left. Knights Landing chip with MCDRAM to the right.

Awkward Family Photo
